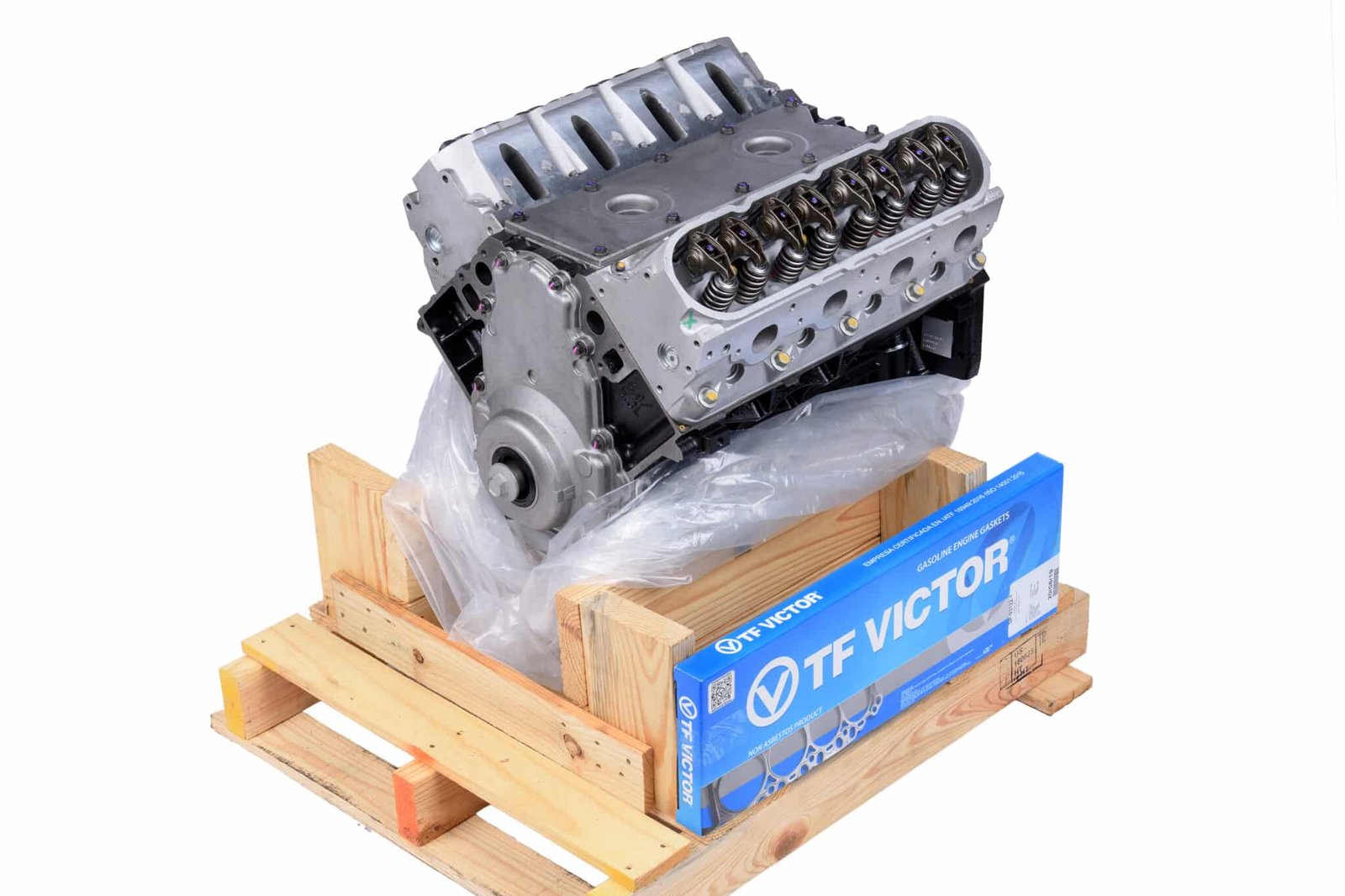

Chevy 5.3L L59 V8 Remanufactured Engine – 1999-2007 4WD/AWD
Original price was: $3,199.00.$2,799.00Current price is: $2,799.00.
5.3L L59 V8 remanufactured engine for compatible
1999-2007 Chevrolet, Chevy, GMC and Cadillac 4WD/AWD applications.
Built as a replacement powertrain solution for selected Silverado, Sierra,
Suburban, Tahoe, Yukon, Yukon XL, Avalanche, Express, Savana and Escalade applications.
- 5.3L V8 L59 / LM7 applications
- Compatible with selected 4WD/AWD configurations
- Assembled with oil pan and timing cover
- Professionally remanufactured to meet or exceed applicable OEM specifications
- Always verify vehicle fitment and engine specifications before ordering
Premium 5.3L V8 Replacement Engine
This 5.3L L59 remanufactured engine is built for
selected GM vehicles equipped with a 5.3-liter V8 engine. The
engine uses an iron block with aluminum cylinder heads and is
associated with L59 and LM7 manufacturer engine codes.
The assembly is supplied with an oil pan and timing cover and is
configured for compatible four-wheel-drive and all-wheel-drive
applications. The listed specifications and vehicle fitment
information should be used to determine compatibility with your
vehicle.
- Engine: 5.3L V8
- Engine Codes: L59 / LM7
- Displacement: 325 cubic inches / 5.3L
- Configuration: 4WD / AWD applications
- Block: Iron
- Cylinder Heads: Aluminum
- Fuel: Gasoline / Ethanol
- Head Type: OHV
- Cylinders: 8
- Valves: 16
How This Remanufactured Engine Is Prepared
A remanufactured engine is more than a used engine assembly.
The remanufacturing process involves disassembly, cleaning,
inspection, machining, component replacement and final testing
to prepare the engine for its intended application.
Deep Cleaning
The engine is completely disassembled before the remanufacturing
process begins. Cast-iron components are hot tanked, while
aluminum components are thermally cleaned where applicable.
Thorough cleaning helps prepare individual components for
detailed inspection and machining.
Inspection and Crack Detection
Engine components are visually inspected throughout the process.
Applicable metal components are also checked using magnetic-particle
inspection to help identify microscopic cracks and fissures that
could affect long-term engine performance.
Machining and Replacement Components
Required machining is performed during the rebuilding process,
including CNC machining of deck surfaces. Depending on the engine
assembly, new components may include bearings, pistons, rings,
lifters, oil pump, gaskets, Viton valve seals, freeze plugs and
galley plugs.
The timing system is also addressed during the remanufacturing
process. Depending on the application, this can include a new
timing chain with tensioners or a new timing belt with tensioner.
Engines using a timing-driven water pump may also receive a new
water pump.
Final SIM Testing
After reassembly, the engine undergoes SIM testing. The cooling
and oil systems are pressurized and the crankshaft is spun at
high RPM to help verify compression, system operation and
overall build quality.
1999-2007 5.3L Engine Vehicle Fitment
This 5.3L V8 remanufactured engine is listed for
selected Chevrolet, GMC and Cadillac vehicles manufactured from
1999 through 2007. The following applications are based on the
supplied fitment information.
| Year | Make | Model | Engine |
|---|---|---|---|
| 1999-2000 | Chevrolet | Silverado 2500 | 5.3L V8 / 5328cc |
| 1999-2000 | GMC | Sierra 2500 | 5.3L V8 / 5328cc |
| 1999-2006 | Chevrolet | Silverado 1500 | 5.3L V8 / 5328cc |
| 1999-2006 | GMC | Sierra 1500 | 5.3L V8 / 5328cc |
| 2000-2006 | Chevrolet | Suburban 1500 | 5.3L V8 / 5328cc |
| 2000-2006 | Chevrolet | Tahoe | 5.3L V8 / 5328cc |
| 2000-2006 | GMC | Yukon | 5.3L V8 / 5328cc |
| 2000-2006 | GMC | Yukon XL 1500 | 5.3L V8 / 5328cc |
| 2002-2005 | Cadillac | Escalade | 5.3L V8 / 5328cc |
| 2002-2006 | Chevrolet | Avalanche 1500 | 5.3L V8 / 5328cc |
| 2003-2005 | Chevrolet | Express 2500 | 5.3L V8 / 5328cc |
| 2003-2005 | GMC | Savana 2500 | 5.3L V8 / 5328cc |
| 2003-2007 | Chevrolet | Express 1500 | 5.3L V8 / 5328cc |
| 2003-2007 | GMC | Savana 1500 | 5.3L V8 / 5328cc |
| 2007 | Chevrolet | Silverado 1500 Classic | 5.3L V8 / 5328cc |
| 2007 | GMC | Sierra | 5.3L V8 / 5328cc |
| 2007 | GMC | Sierra 1500 Classic | 5.3L V8 / 5328cc |
5.3L L59 Engine Specifications
| Engine Size | 5.3L |
|---|---|
| Displacement | 325 cubic inches |
| Engine Manufacturer Code | L59 / LM7 |
| Engine Configuration | V8 |
| Fuel Type | Gasoline / Ethanol |
| Engine Block Material | Iron |
| Cylinder Head Material | Aluminum |
| Head Type | OHV |
| Number of Cylinders | 8 |
| Number of Valves | 16 |
| VIN Code | T |
| Cam Cast Numbers | 0966, 0967 |
| Crank Cast Number | 12552216 |
| Block Cast Numbers | 12551358, 67392, 393, 398 |
| Left Head Cast Numbers | 59862, 61706 |
| Right Head Cast Numbers | 58862, 61706 |
| Main Bearing Cap Bolts | 6 |
| Grade Type | Premium |
Engine Assembly Information
This 5.3L L59 replacement engine is supplied as
an assembled powertrain component with an oil pan and timing cover.
The exact configuration and included components can vary according
to the application.
Before installation, compare the replacement engine with the
original engine and verify all application-specific requirements.
Professional installation is recommended to ensure the engine is
correctly installed and configured for the vehicle.
Check Fitment Before Ordering
A 5.3L V8 engine can be used across multiple GM vehicle platforms
and configurations. Engine codes, VIN information, casting numbers,
drivetrain configuration and model year can all affect compatibility.
For this reason, do not select a replacement engine based on
displacement alone. Confirm the vehicle year, make, model, engine
code and drivetrain configuration against the information provided
on this product page.
If you are unsure whether this engine is the correct replacement
for your vehicle,
contact Mechron Tech before ordering
and provide your vehicle details.
Ready to Find Your 5.3L Replacement Engine?
Explore the specifications and vehicle applications for this
5.3L L59 remanufactured engine and confirm
compatibility with your vehicle before ordering.
